Waveshare Jetson Orin Nano/NX Super Base Board HDMI Version, Based on Jetson Orin Nano/NX AI Module

Marque: Waveshare
Nom de modèle: Jetson Orin Nano/NX Super Base Board
Technologie de connectivité: USB
Appareils compatibles: Caméra, Ordinateur personnel, Clavier, Haut-parleur
Nombre total de ports USB: 2
Compatibilité maison intelligente: Non compatible maison connectée
Nombre d’emballages: 1
Nombre d'articles: 1
Nombre d'unités: 1.0 unité

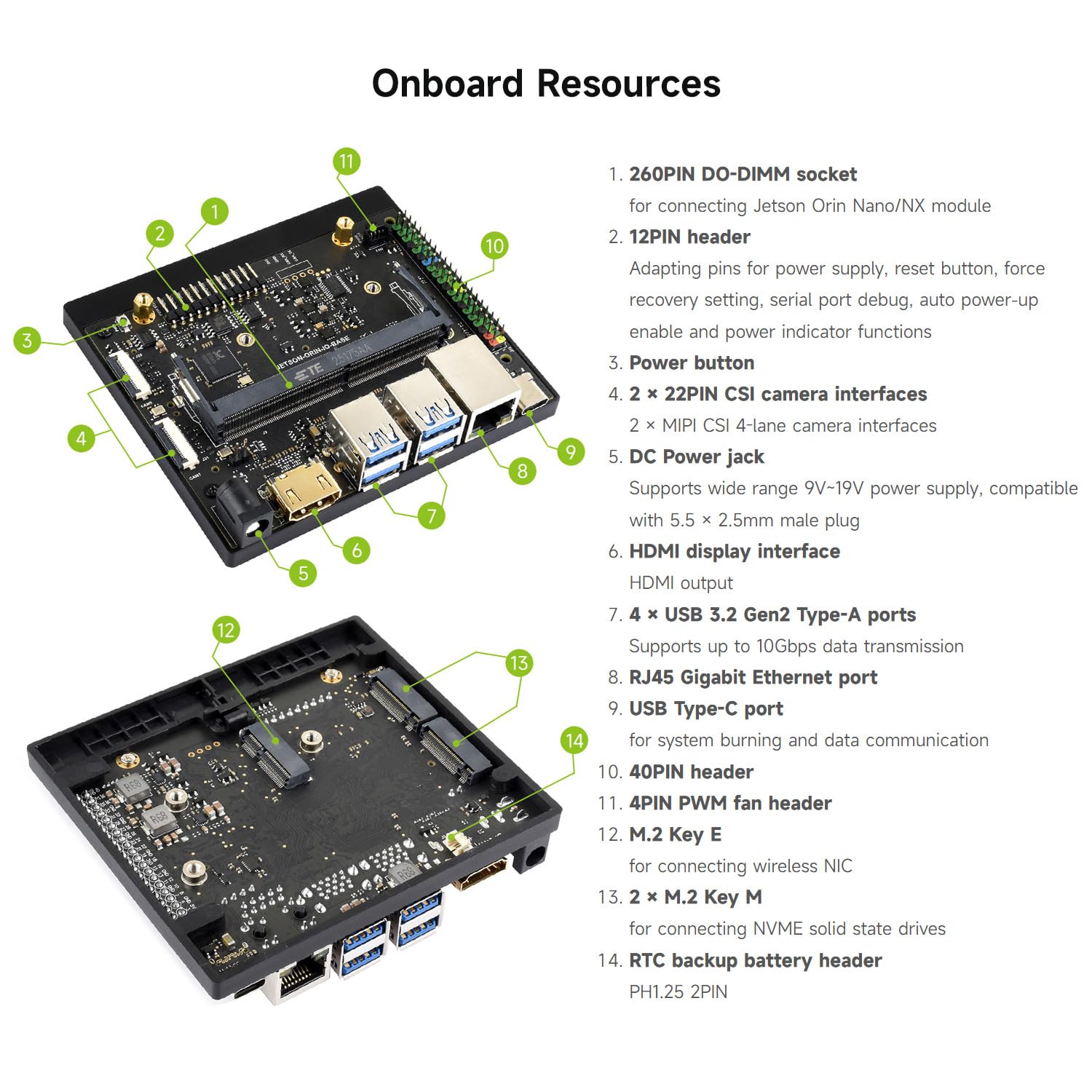

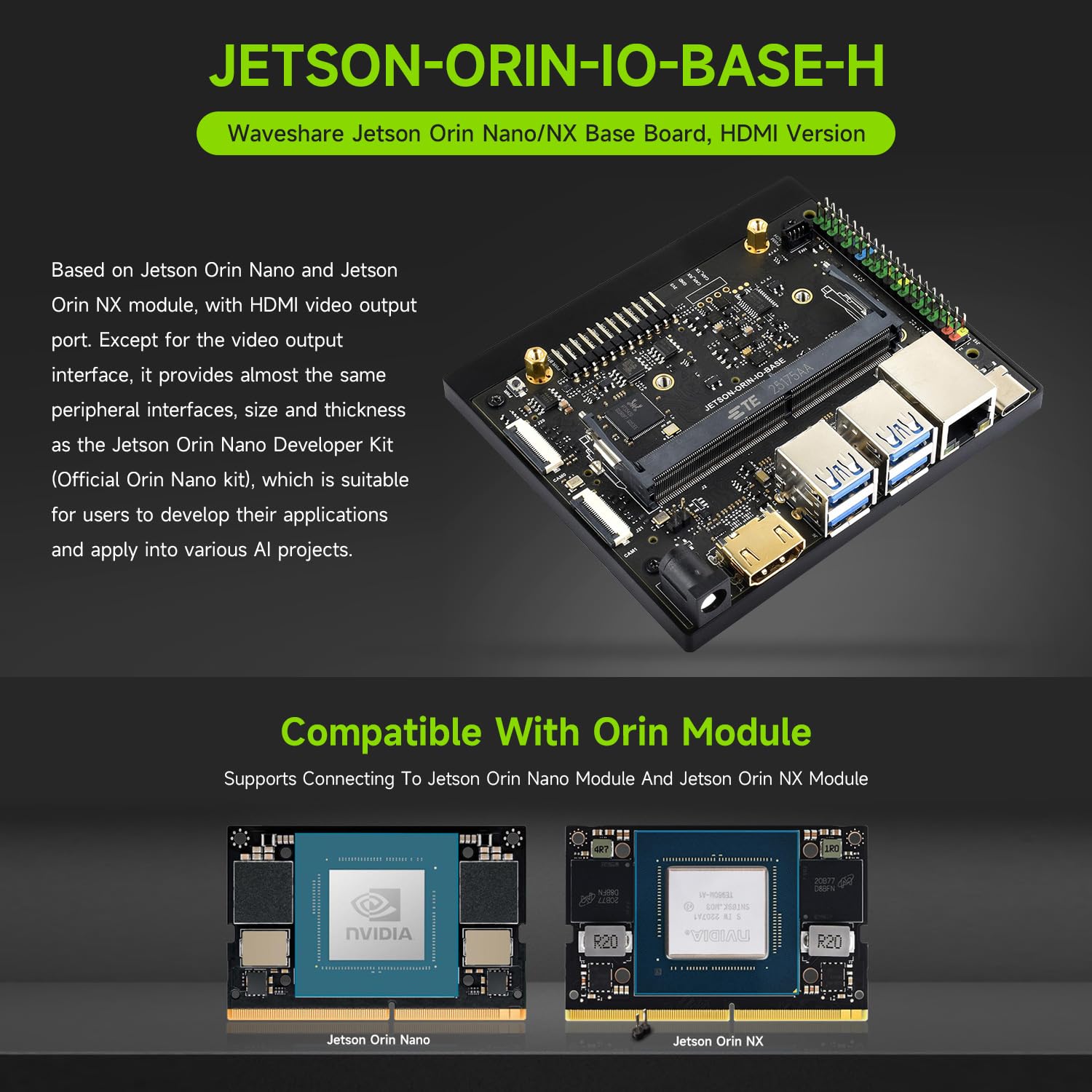

- Based on Jetson Orin Nano and Jetson Orin NX module, with HDMI video output port. Except for the video output interface, it provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.

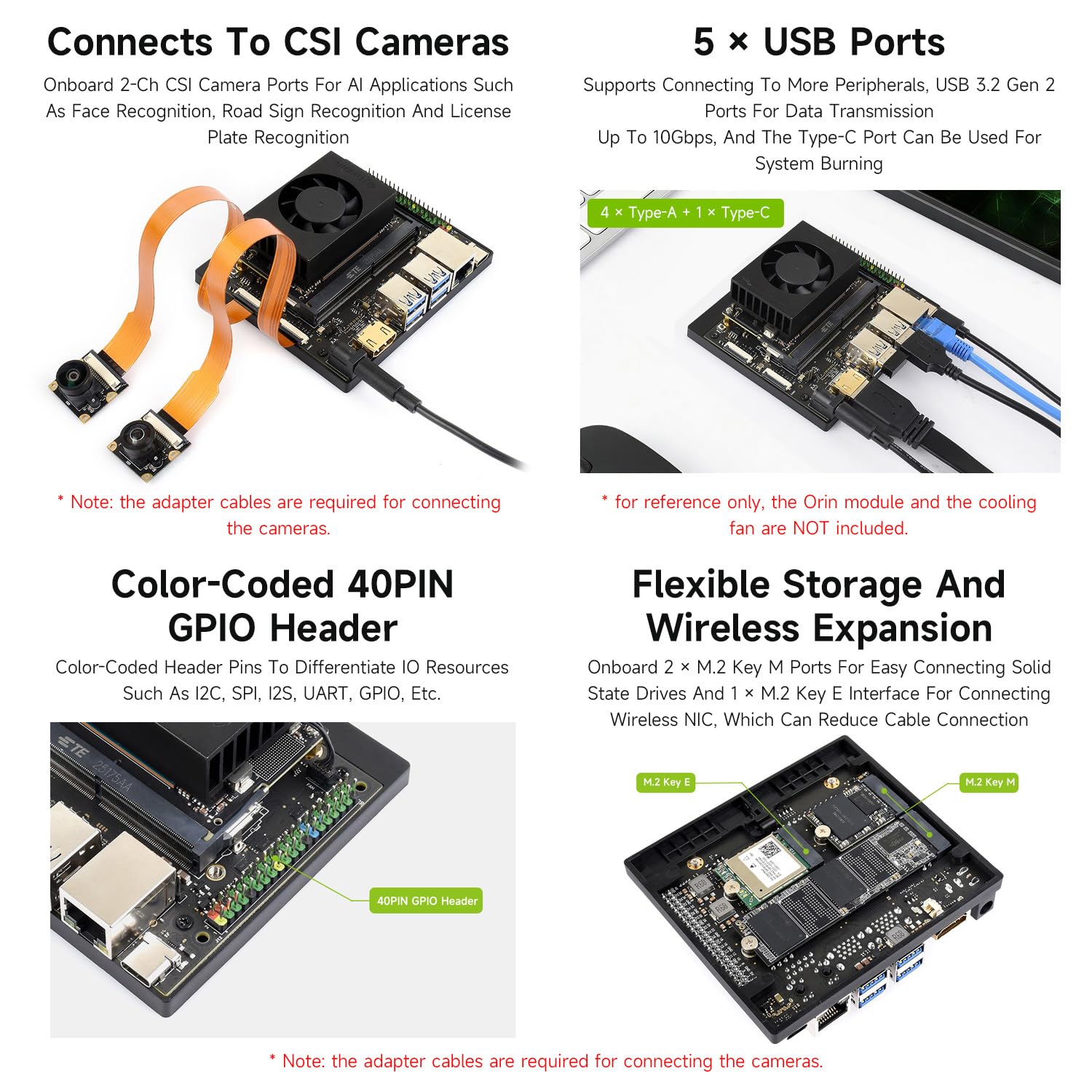

- Onboard 2-ch CSI camera ports for AI applications such as face recognition, road sign recognition and license plate recognition.
- Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, and the Type-C port can be used for system burning.
- color-coded header pins to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.
- Onboard 2 × M.2 Key M ports for easy connecting Solid State Drives and 1 × M.2 Key E interface for connecting wireless NIC, which can reduce cable connection.
