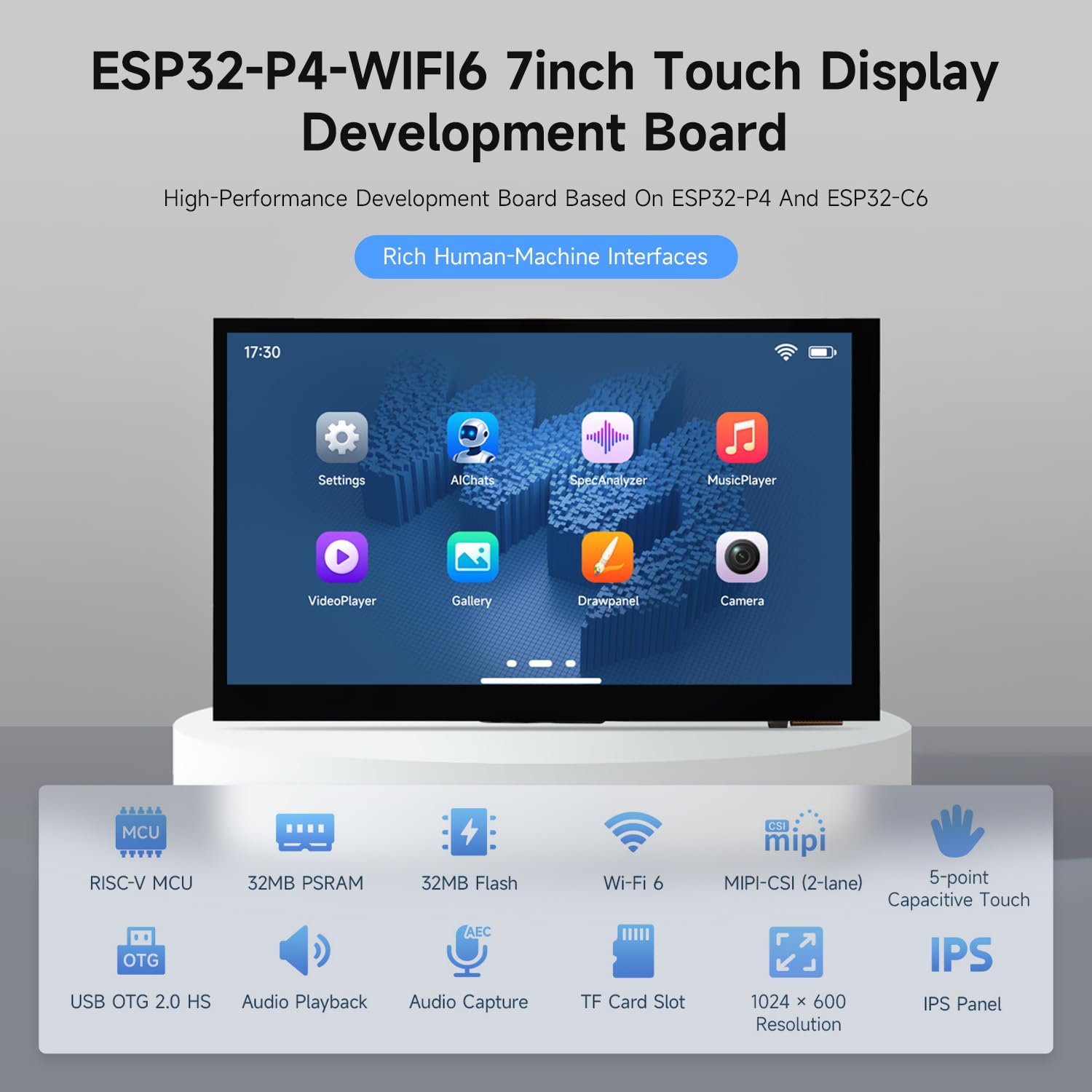

Waveshare ESP32-P4-WIFI6 7inch 5-Point Touch Display Development Board(with OV5647 Camera), Based on ESP32-P4 and ESP32-C6, 1024x600 Resolution, Supports Wi-FI 6 / BT 5 (Le)

Marque: Waveshare
Nom de modèle: ESP32-P4-WIFI6
Capacité de stockage de la mémoire: 128 Ko
Technologie de connectivité: Wi-Fi 6, Bluetooth 5.0, USB 2.0, MIPI-CSI, MIPI-DSI, SDIO 3.0, RS485, CAN, I2C, UART
Système d'exploitation: Linux
Fabricant de CPU: Espressif
Appareils compatibles: Ordinateur personnel, Caméra, Smartphone, Microcontrôleur, Imprimante, Clavier, Haut-parleur
Compatibilité maison intelligente: Compatible maison connectée
Nombre d'articles: 1
Nombre d'unités: 1.0 unité

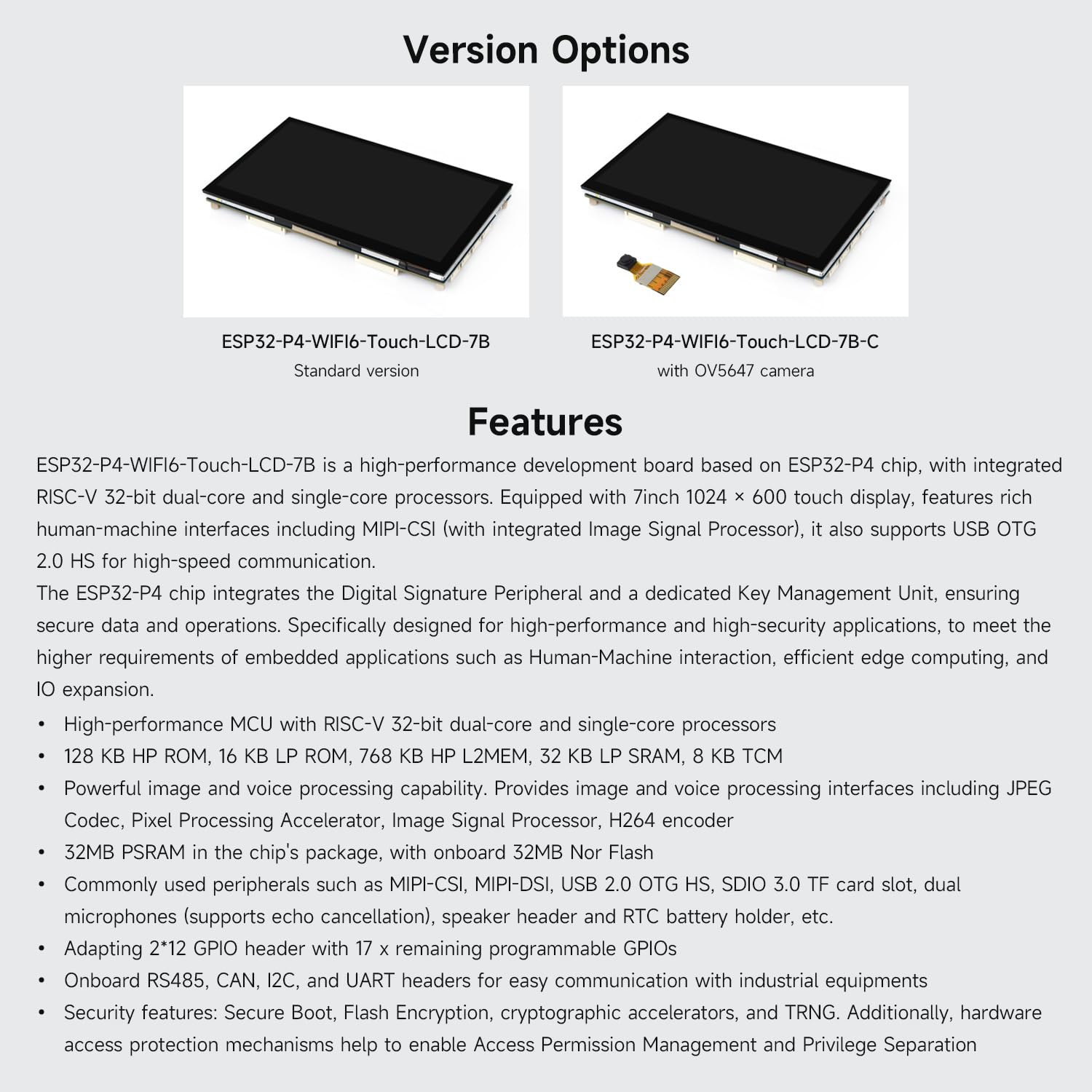

- ESP32-P4-WIFI6-Touch-LCD-7B-C, with OV5647 camera. High-performance MCU with RISC-V 32-bit dual-core and single-core processors. 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
- 32MB PStatic RAM in the chip's package, with onboard 32MB Nor Flash. Adapting 2*12 GPIO header with 17 x remaining programmable GPIOs. Onboard RS485, CAN, I2C, and UART headers for easy communication with industrial equipments
- Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG HS, SDIO 3.0 TF card slot, dual microphones (supports echo cancellation), speaker header and RTC batt holder, etc.
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
