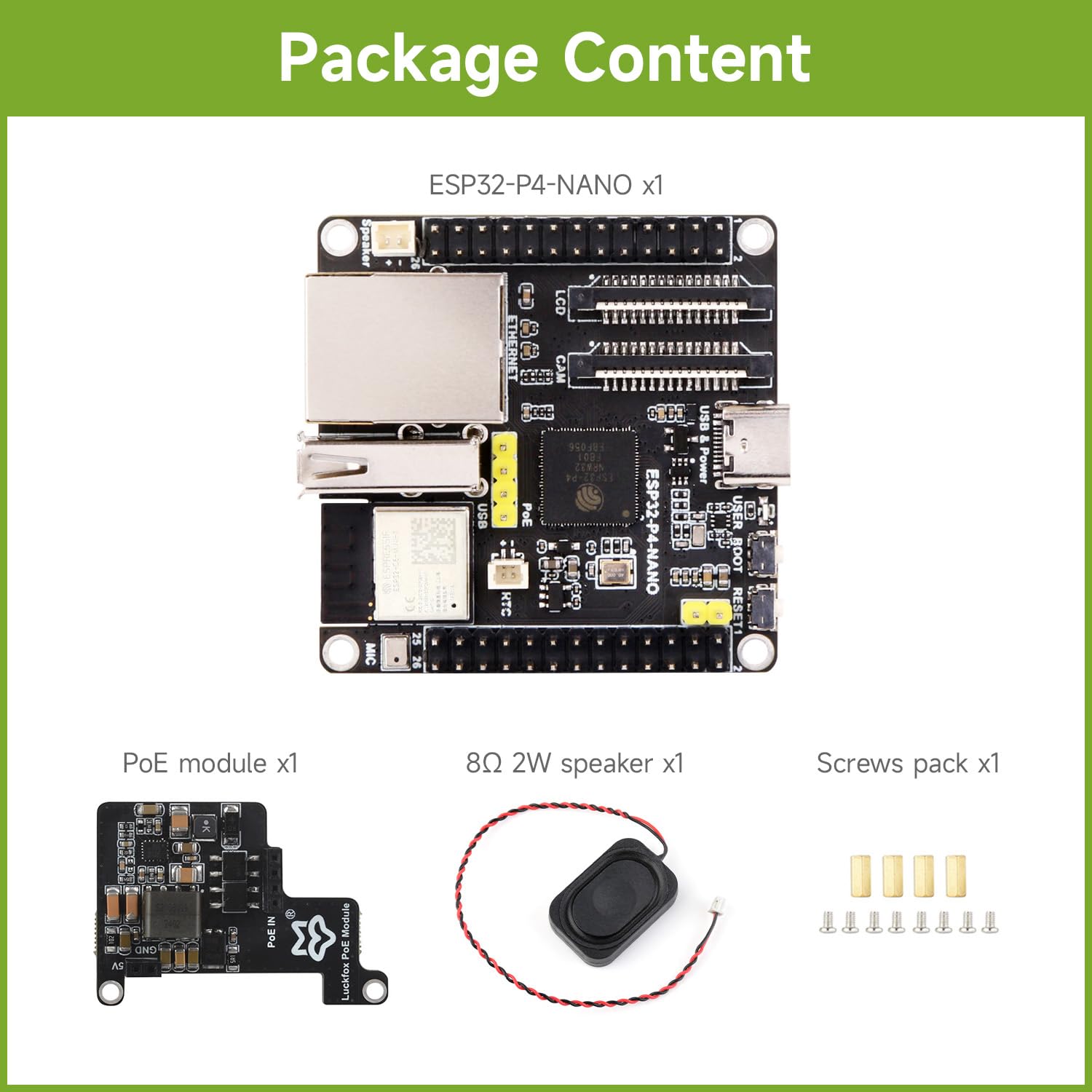

Waveshare ESP32-P4-NANO-KIT-B Development Board Based on ESP32-P4 Chip with RISC-V Dual-Core and Single-Core Processors, Supports Wi-FI 6 and BLE 5/BLE, with Speaker and Luck-Fox PoE Module

Marque: Waveshare
Capacité de stockage de la mémoire: 16 MB
Technologie de connectivité: Ethernet, Wi-Fi 6
Norme de communication sans fil: 802.11ax
Appareils compatibles: Appareil photo, Appareil réseau, Caméra, Haut-parleur, Lecteur de carte mémoire, Ordinateur personnelVoir plus

- High-performance MCU with RISC-V 32-bit dual-core and single-core processors; 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-RAM, 8 KB TCM; 32MB PS-RAM in the chip's package, with onboard 16MB Nor Flash; Adtaping 2*2*13 GPIO headers with 28 x programmable GPIOs
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
- Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC batt header, etc.
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
