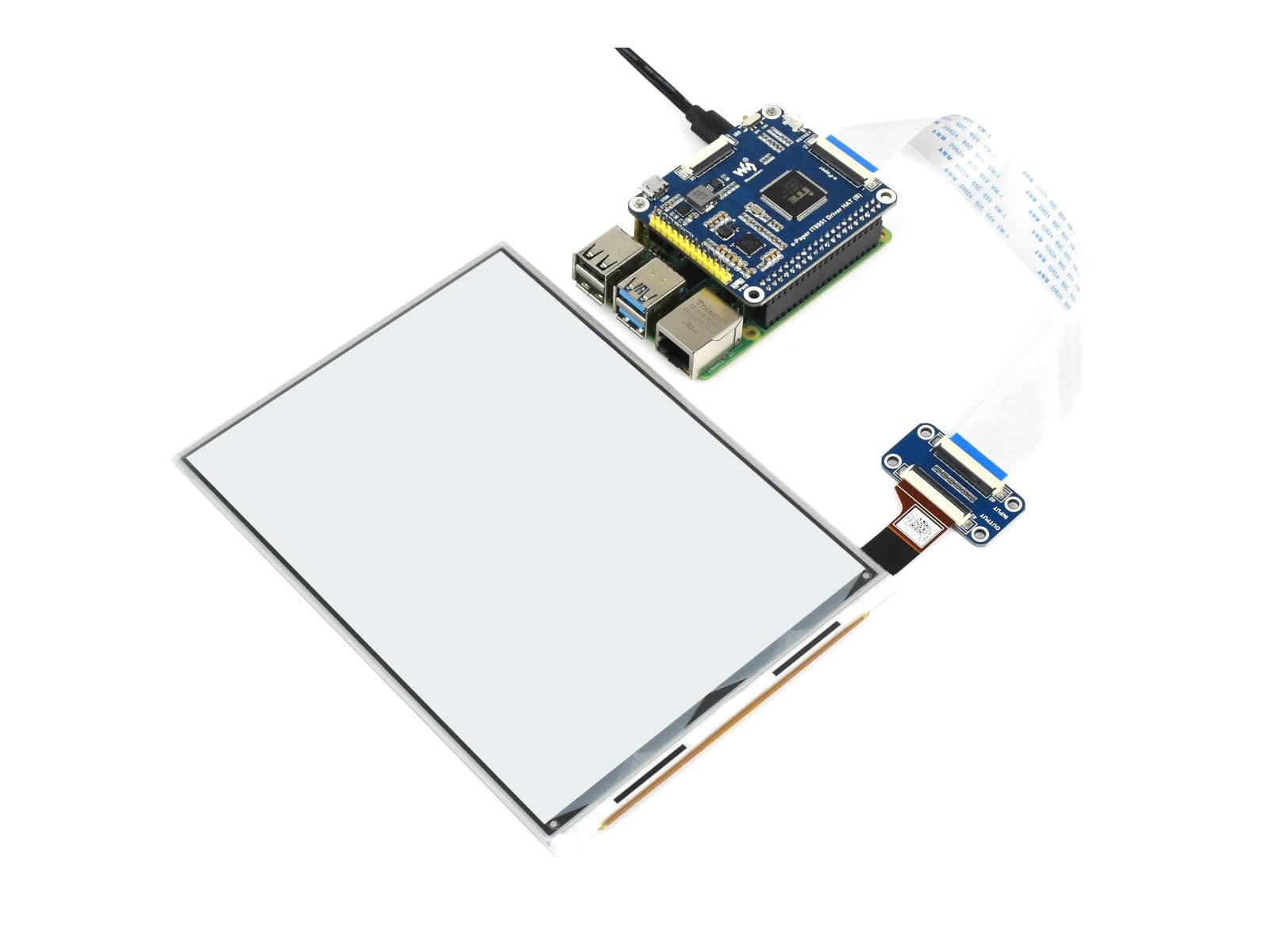

Waveshare 7.8inch E-Ink Display Hat for Raspberry Pi 1872x1404 Resolution E-Paper IT8951 Controller USB/SPI/I80 Interface Supports Partial Refresh for Ebook Reader

Marque: Waveshare
Nom de modèle: 7.8inch e-Paper HAT
Technologie de connectivité: USB
Composants inclus: 7.8inch e-Paper, e-Paper IT8951 Driver HAT (B), 7.8inch e-Paper Adapter, 33PIN FFC (same side contact), RPi screws pack (2pcs), PH2.0 20cm 8Pin, USB type A plug to micro B plug cableVoir plus
Système d'exploitation: Linux
Fabricant de CPU: VIA
Norme de communication sans fil: 802.11b
Appareils compatibles: Raspberry Pi 4B, 3B+, 3B, 2B, B+, A+, Zero, Zero W/WH, Zero 2W
Technologie de mémoire RAM: DDR4, LPDDR4
Dimensions du produit: 17,4L x 12,8l x 17,4H centimètres

- Note:7.8inch e-Paper is big size screen, the glass panel and FPC is fragile, please be careful when use it for developing. we recommend you to reinforce the FPC with scotch tape when developing. Please connect all the cables before powering the device, the device cannot support hot-plug.
- This is an E-Ink display HAT for Raspberry Pi, 7.8inch, 1872x1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.
- No backlight, keeps displaying last content for a long time even when power down. Low power consumption, basically power is only required for refreshing.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. USB/SPI/I80 interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
- Outline dimension: 173.8mmx127.6mmx0.78mm. Display size: 158.184mmx118.638mm. Dot pitch: 0.0845mmx0.0845mm. Gray scale: 2-16 (1-4 bit). Full refresh time: 450ms.
