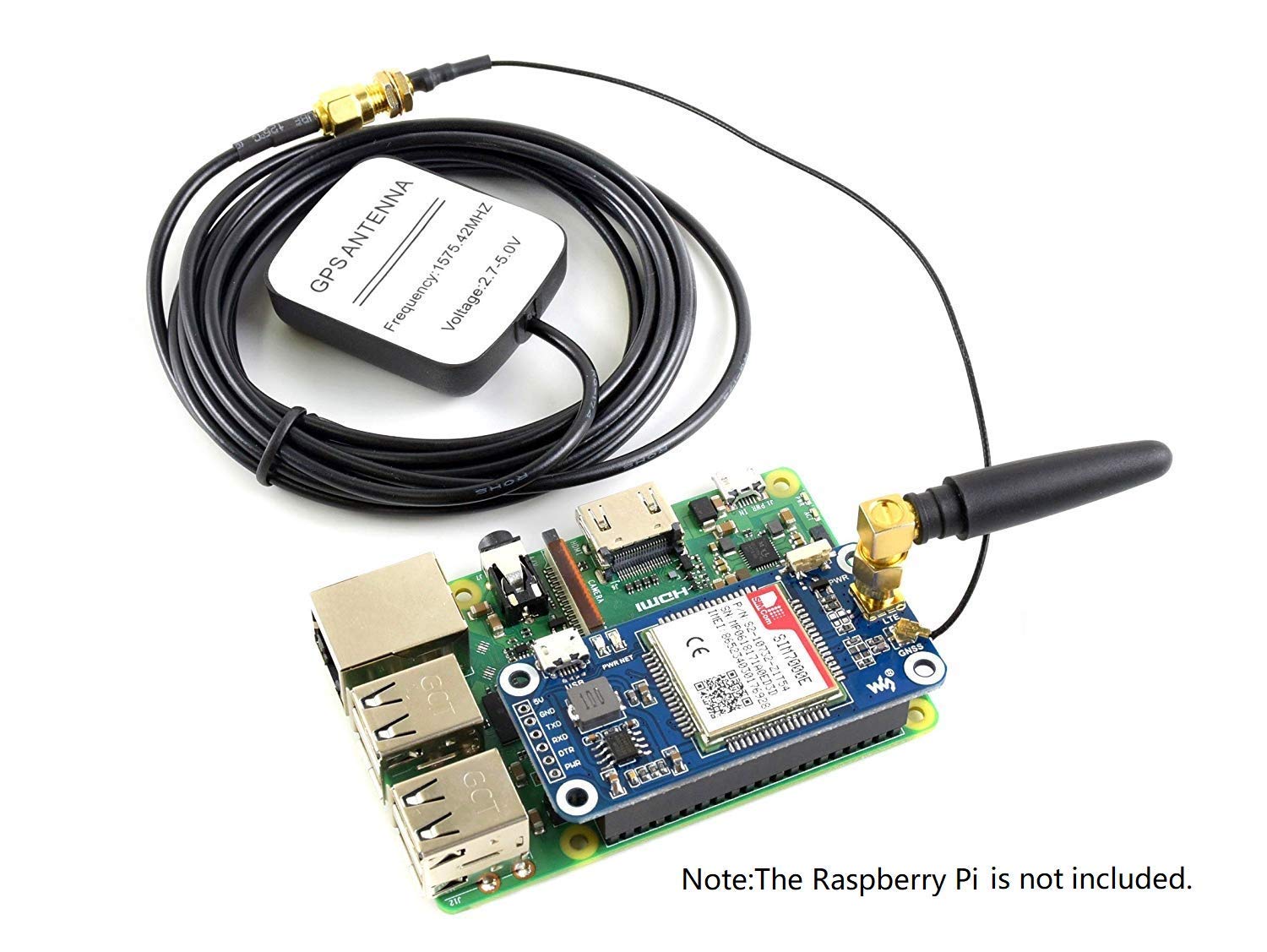

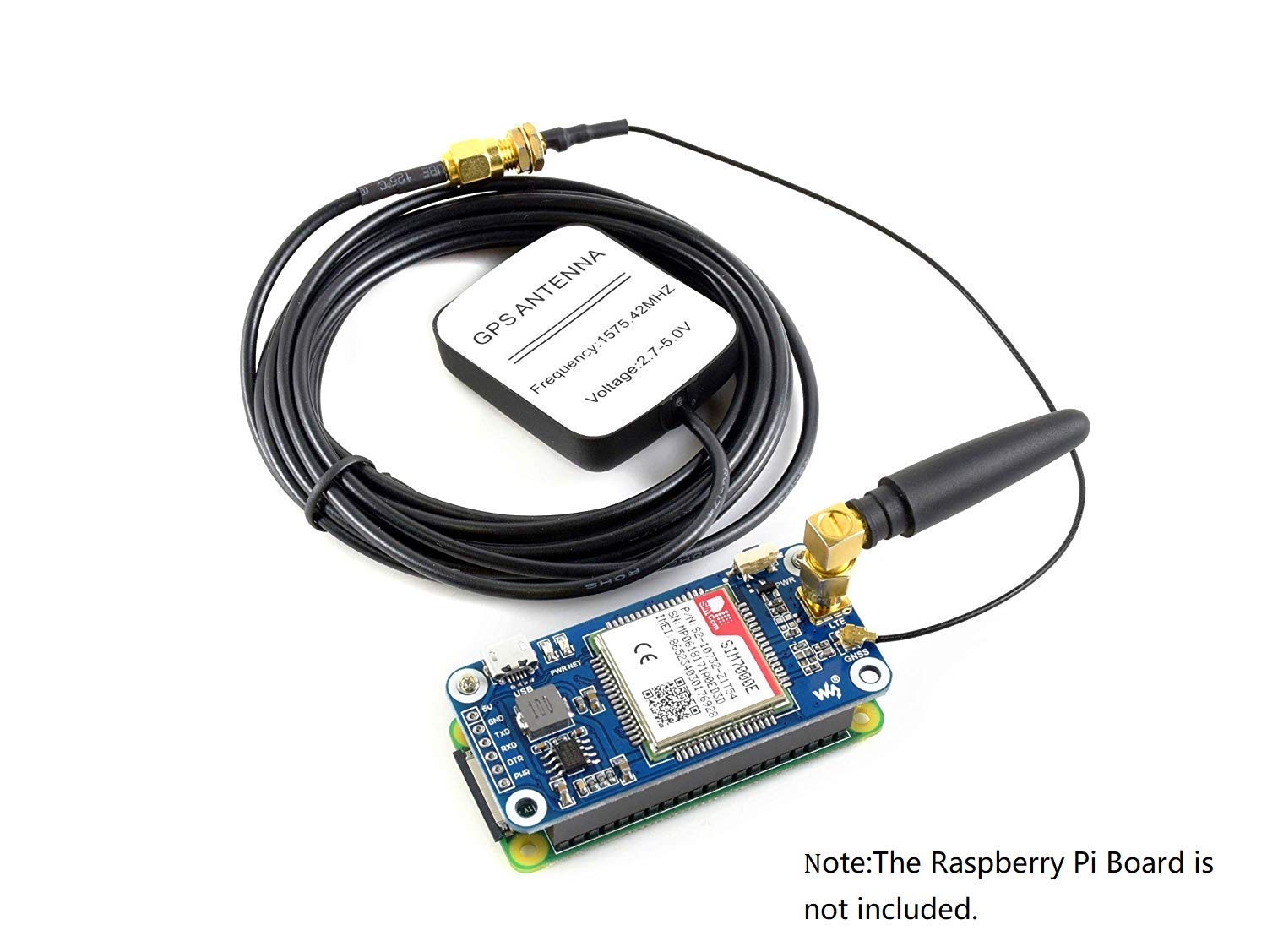

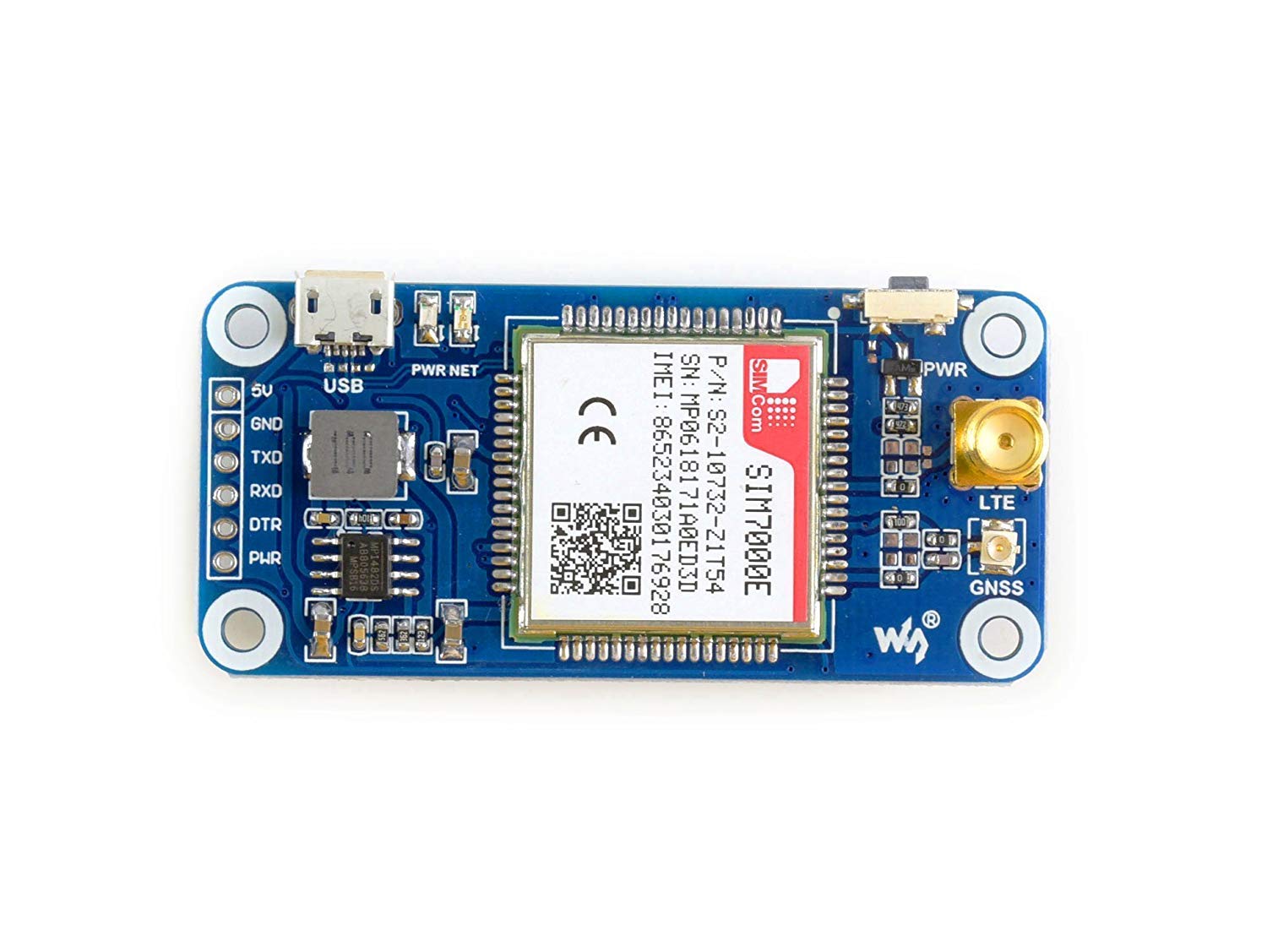

NB-IoT/eMTC/Edge/GPRS/GNSS Hat for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+ Based on SIM7000E Support TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail,GNSS Positioning

Marque: IBest
Nom de modèle: wh/2b/3b/3b+
Technologie de connectivité: USB
Composants inclus: SIM7000E NB-IoT HAT, antenne GSM, antenne externe GPS, câble USB, lot de vis RPi
Système d'exploitation: Linux
Fabricant de CPU: VIA
Norme de communication sans fil: 802.11ad
Appareils compatibles: Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
Technologie de mémoire RAM: LPDDR3
Nombre de processeurs: 1

- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+,Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc., Supports GNSS positioning (GPS,GLONASS,BeiDou and Galileo).Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on.Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor

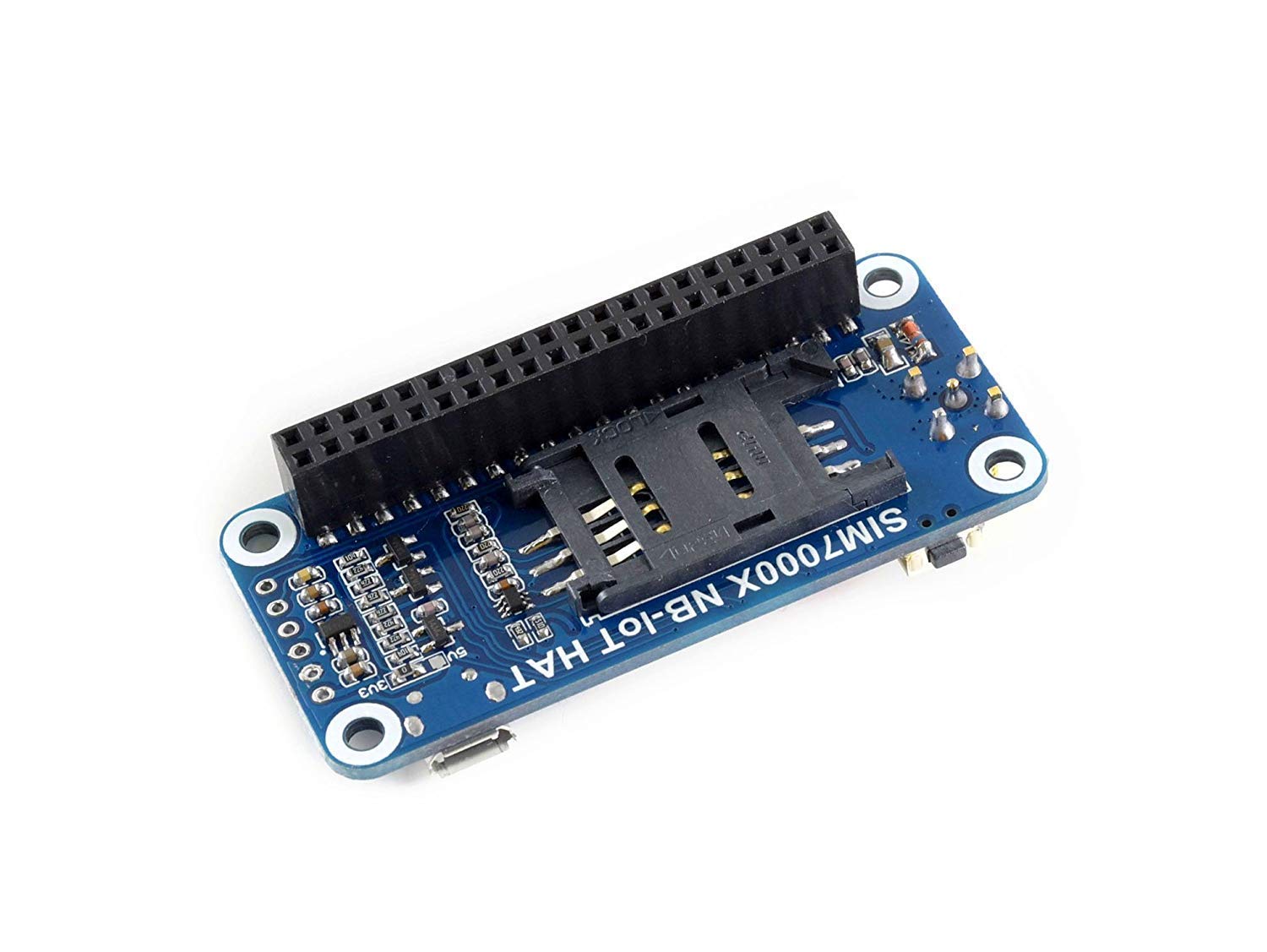

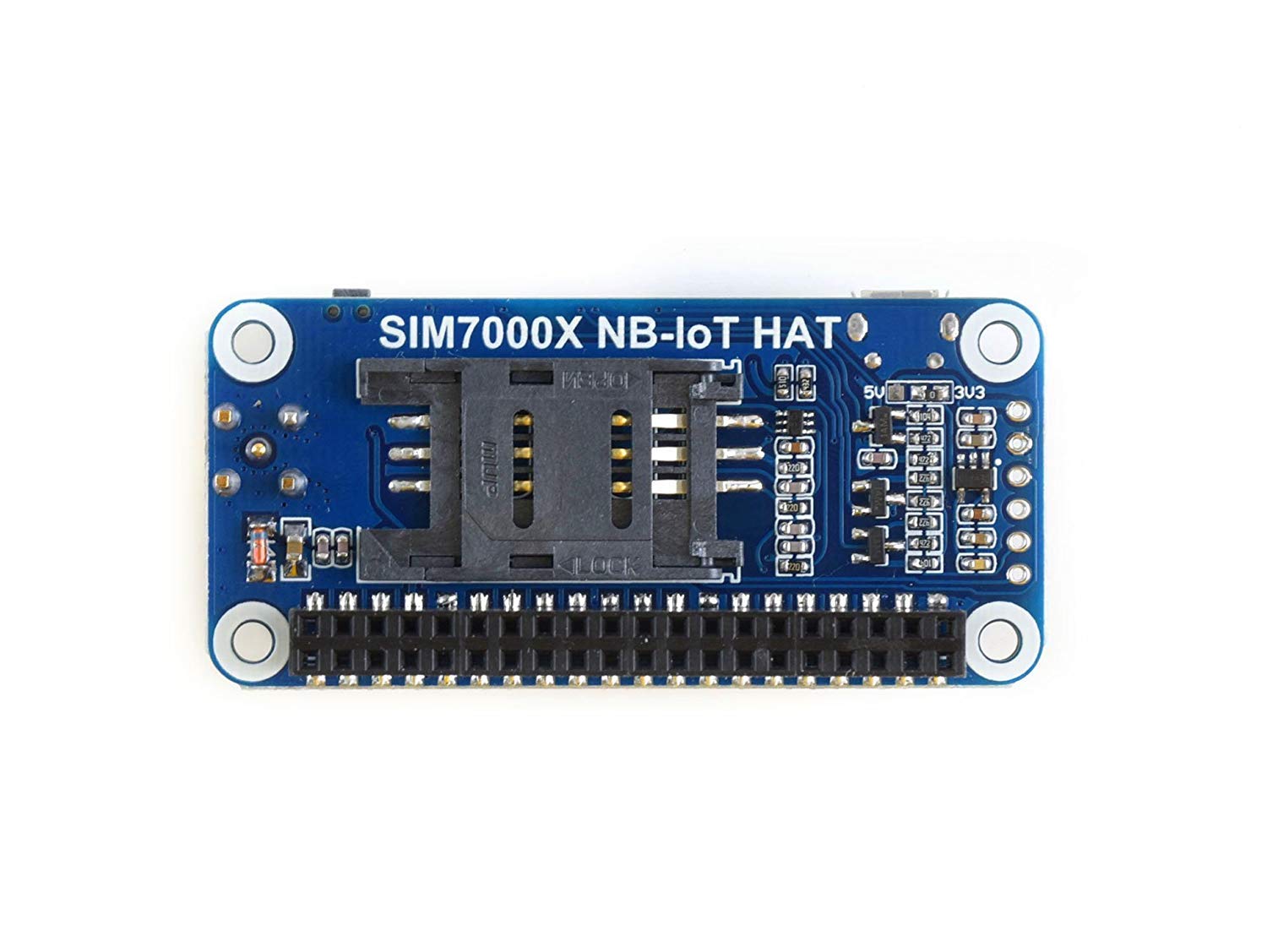

- Breakout UART control pins, to connect with host boards like Arduino/STM32.SIM card slot, compatible with both normal SIM card and NB-IoT specific card
- 2x LED indicators, easy to monitor the working status,Baudrate: 300bps~3686400bps,Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
